Model: YJ-2M-02

Manual Gyro Mixer

The Manual clamping mixer YJ-2M-01 represents the optimal mix between simplicity of use and an everlasting durable unit. The low breakdown rates assurance for very low purchase and maintenance costs.

SEND INQUIRY

Features

Parameter

PRODUCT DETAIL

DOCUMENTS Download

IT GOES WELL WITH

Features

Satisfied Mixing Effect

Rotation and revolution go simultaneously
Single-directional and bi-directional rotating for option, mixing fastly and thoroughly.

Friendly Operation

Clamping and unclamping step requires very little forces to operate it manually.
Control panel with LED display, set the mixing time and cycle easily.

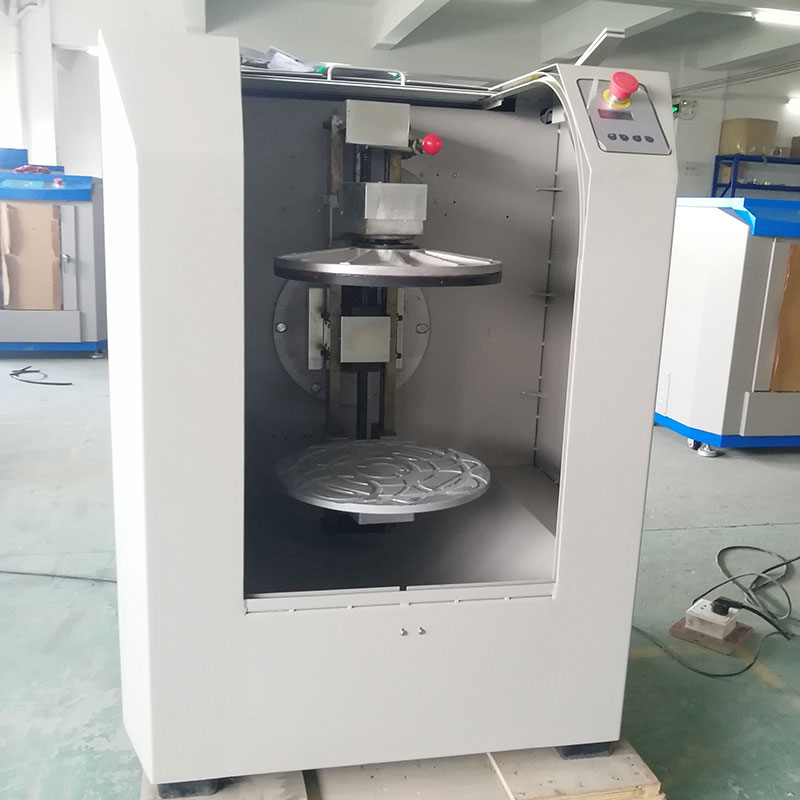

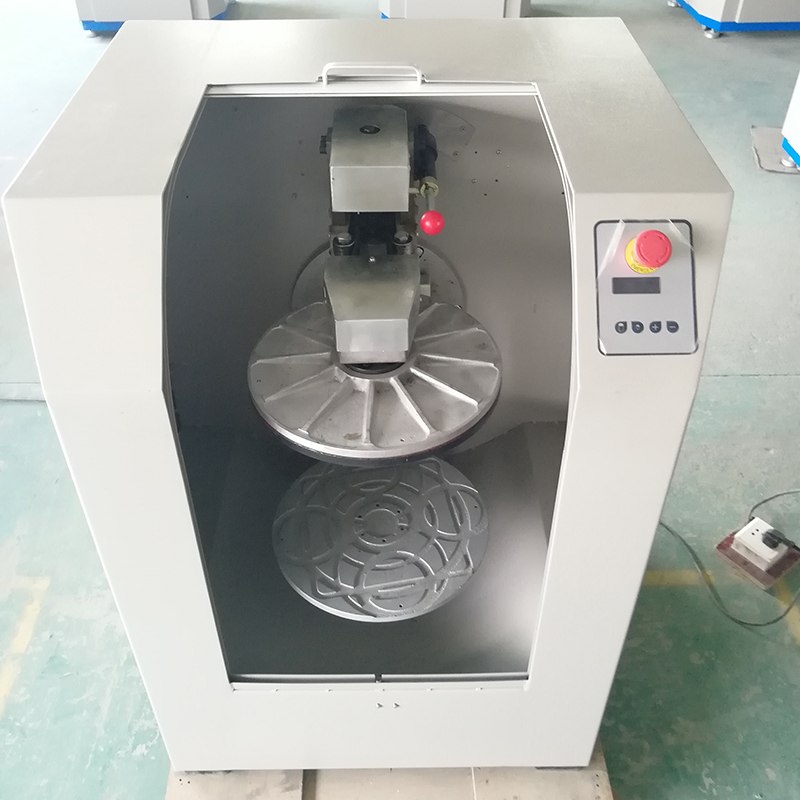

Movable lower clamping plate , load and unload can conveniently.

Safety

Safety inspection switch for door , the mixer will stop running when the door is open.

PARAMETERS

BASE FEATURES**
Type	Gyroscopic mixer
Clamping function	Manual
Plate positioning after mixing cycle	Manual
Mixing time	From 45 sec to 9 mins 45 sec
Mixing speed	80 rpm - 150 rpm
Mixing direction	Single-direction and bi-direction for option
CAN SPECS**
Type of cans	Round / Square
Suitable can height	80mm - 400mm
Maximum can diameter	320mm
Maximun can weight	35 KG
POWER SUPPLY / MACHINE ENVIRONMENT**
Power supply -- Frequency	Single phase 110 /220 V ±10% -- 50/60 HZ
Rated Power	750 W
DIMENSIONS **
Machine Size	780 (L) X 800 (W) X 1015 (H) MM
Packing Size	810 (L) X 830 (W) X 1150 (H) MM
Footprint	0.63 ㎡
WEIGHT **
Machine Weight	180 KG
Gross Weight	200 KG
LOADING QUANTITY **	40 sets / 20" Container
PACKING **	Carton
CERTIFICATE**	CE

PRODUCT DETAIL

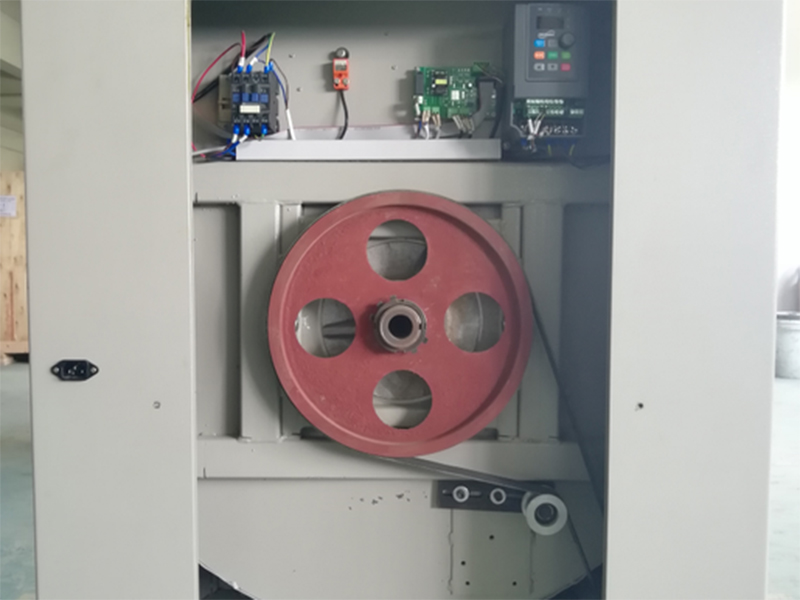

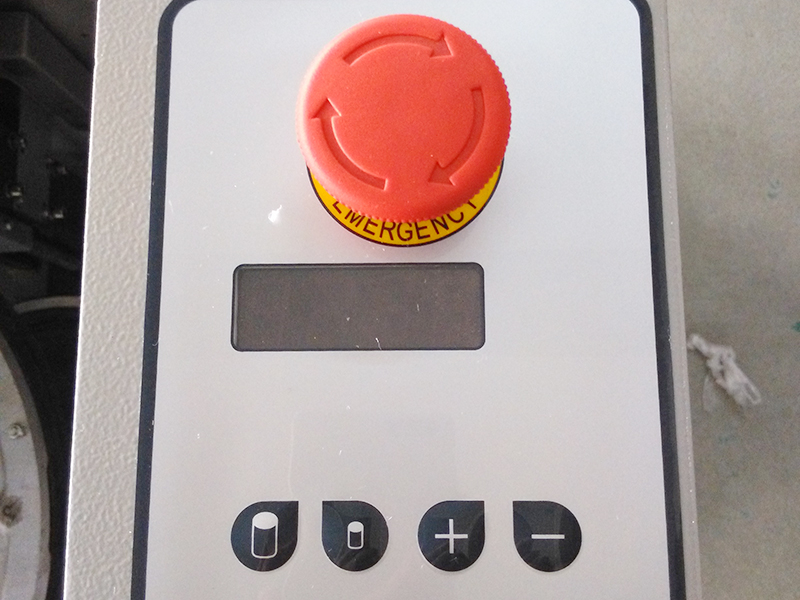

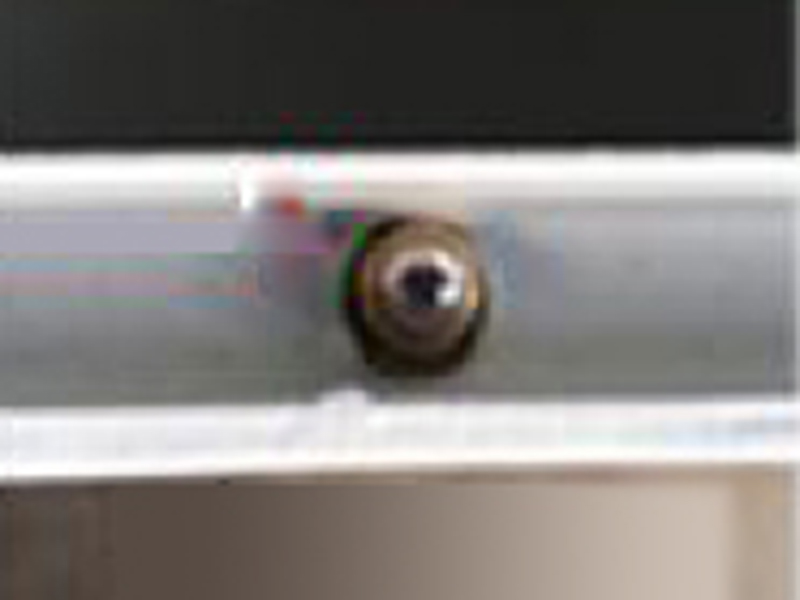

LED Control Panel	Safety inspection switch for door	Back side of mixer

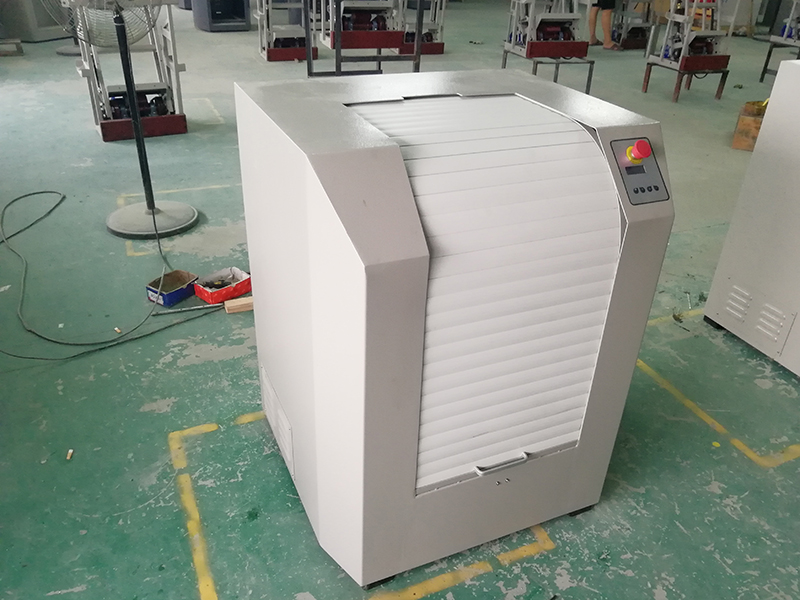

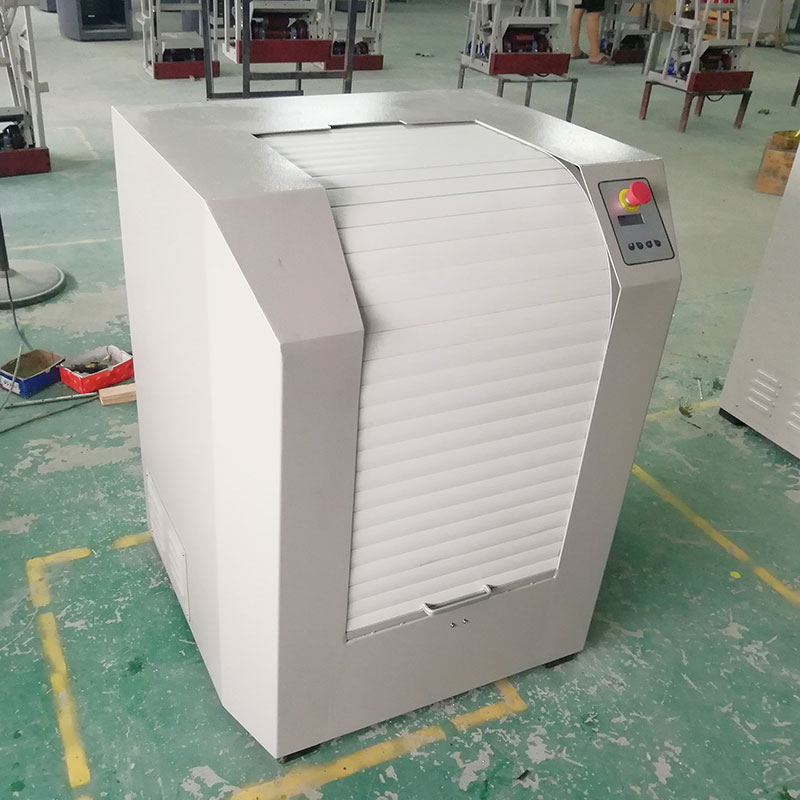

Aluminium alloy shutter door

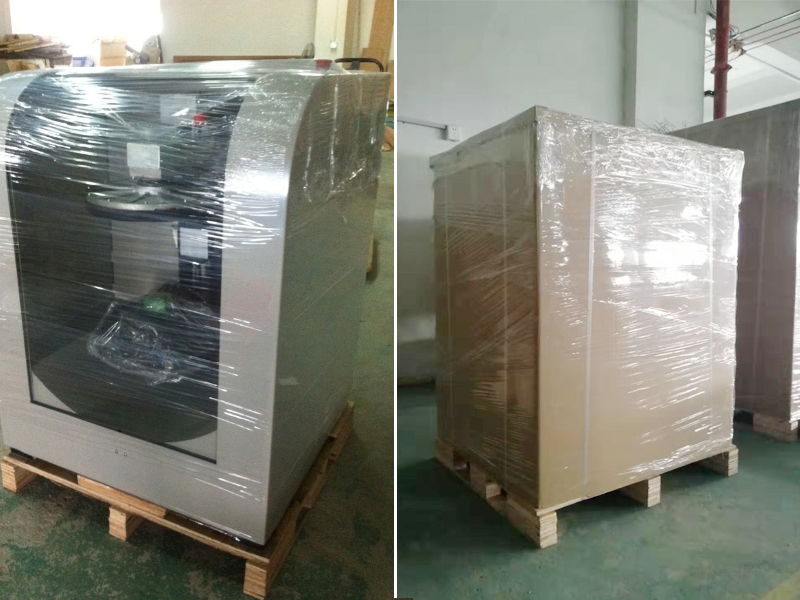

PACKING
